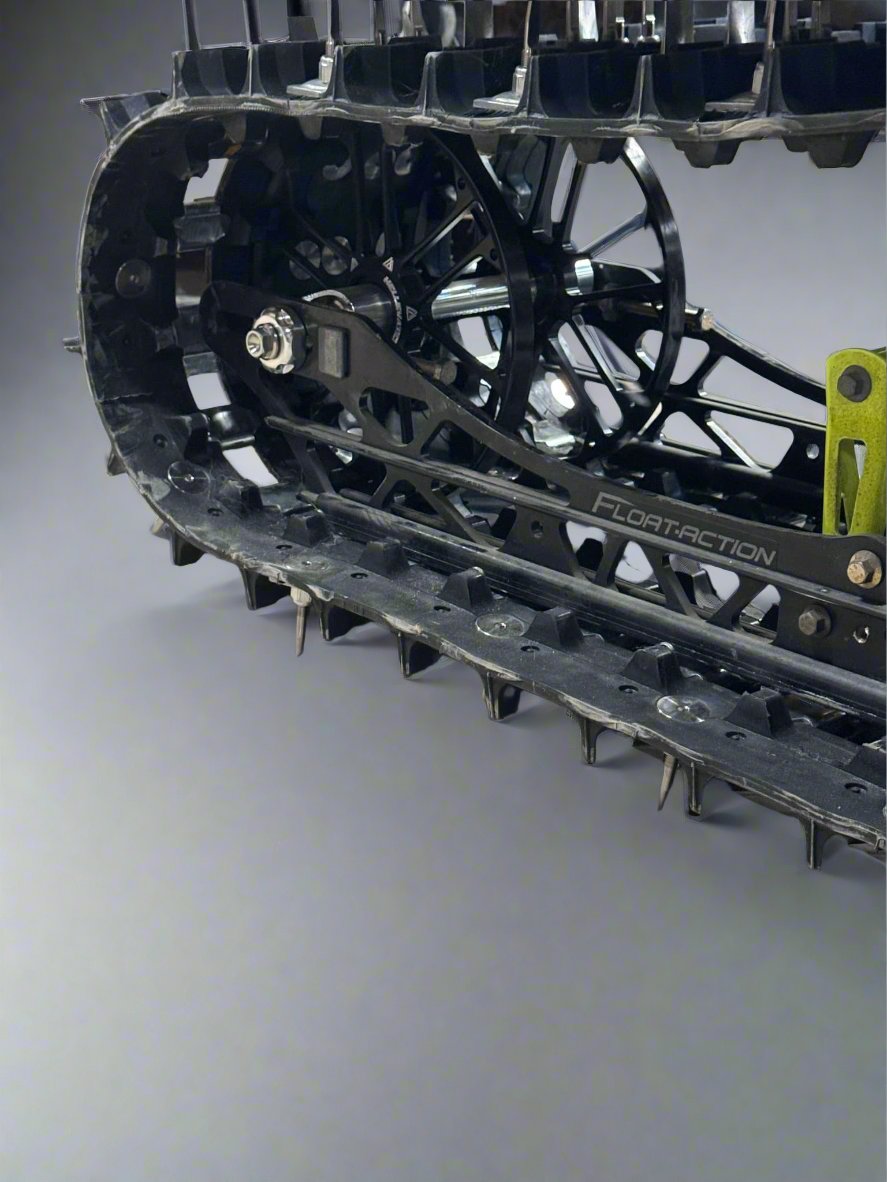

Our offset axles are the lightest, strongest, and highest quality kits available. We proudly utilize 7075 high strength billet aluminum components and 6Al4V titanium hardware. Weight savings up to 1.5 lbs vs other products.

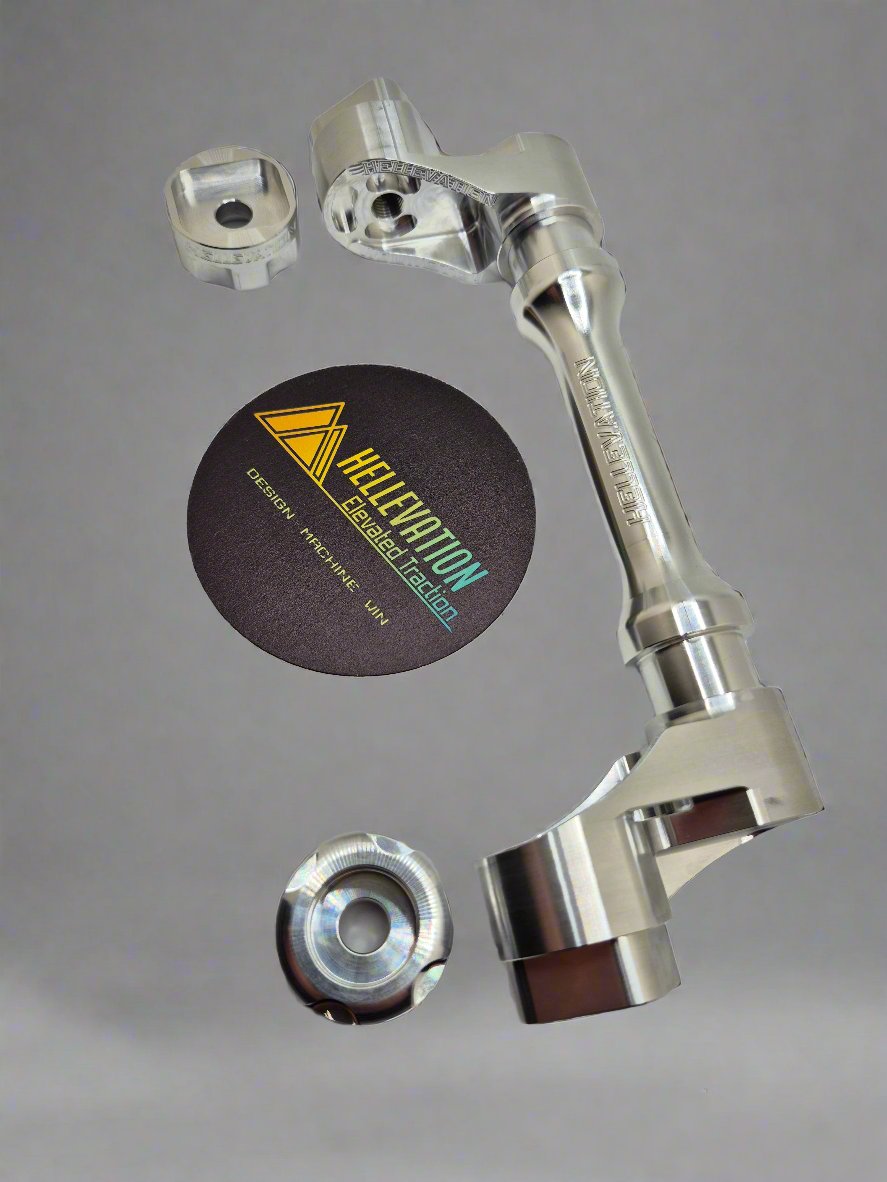

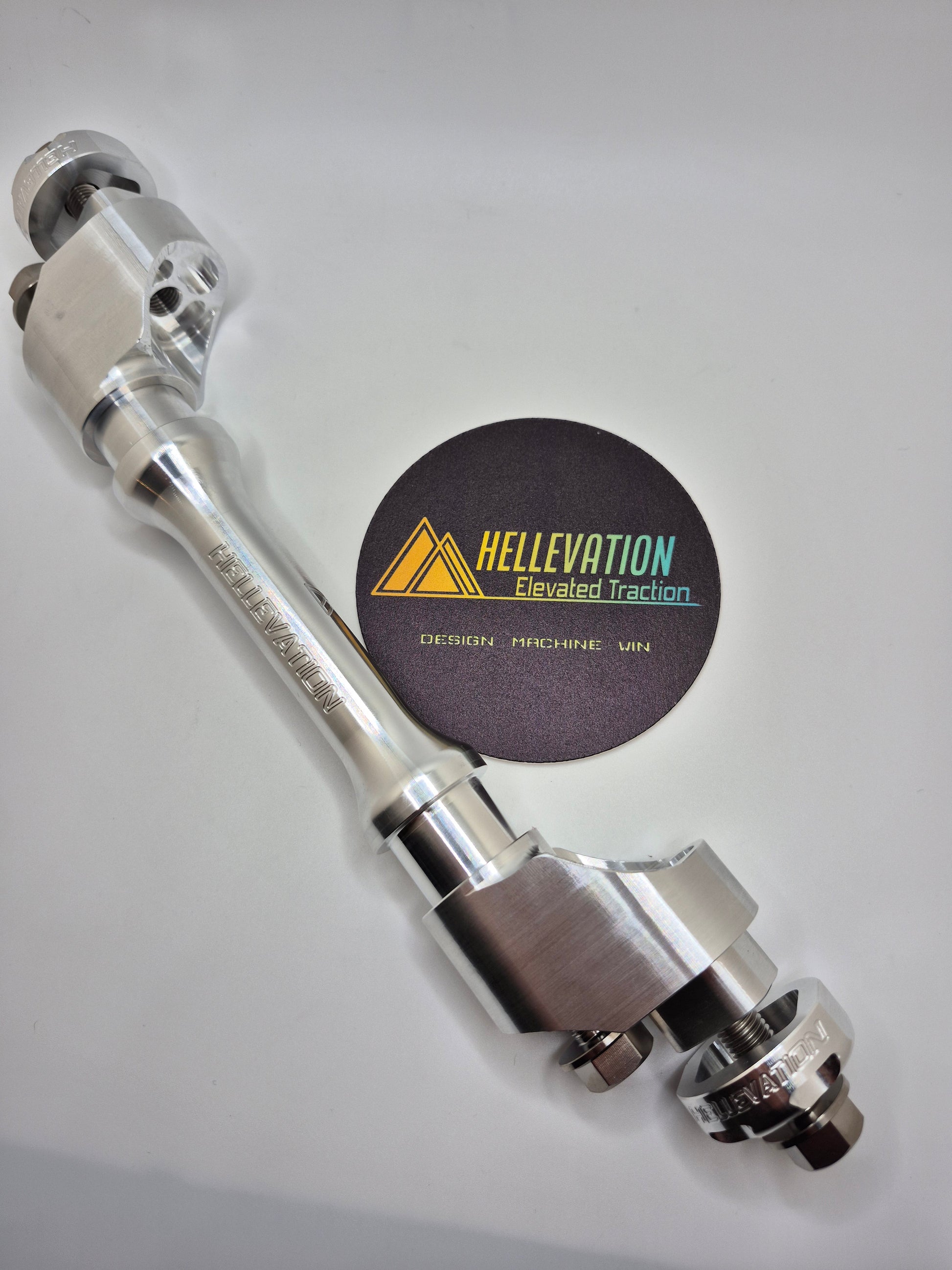

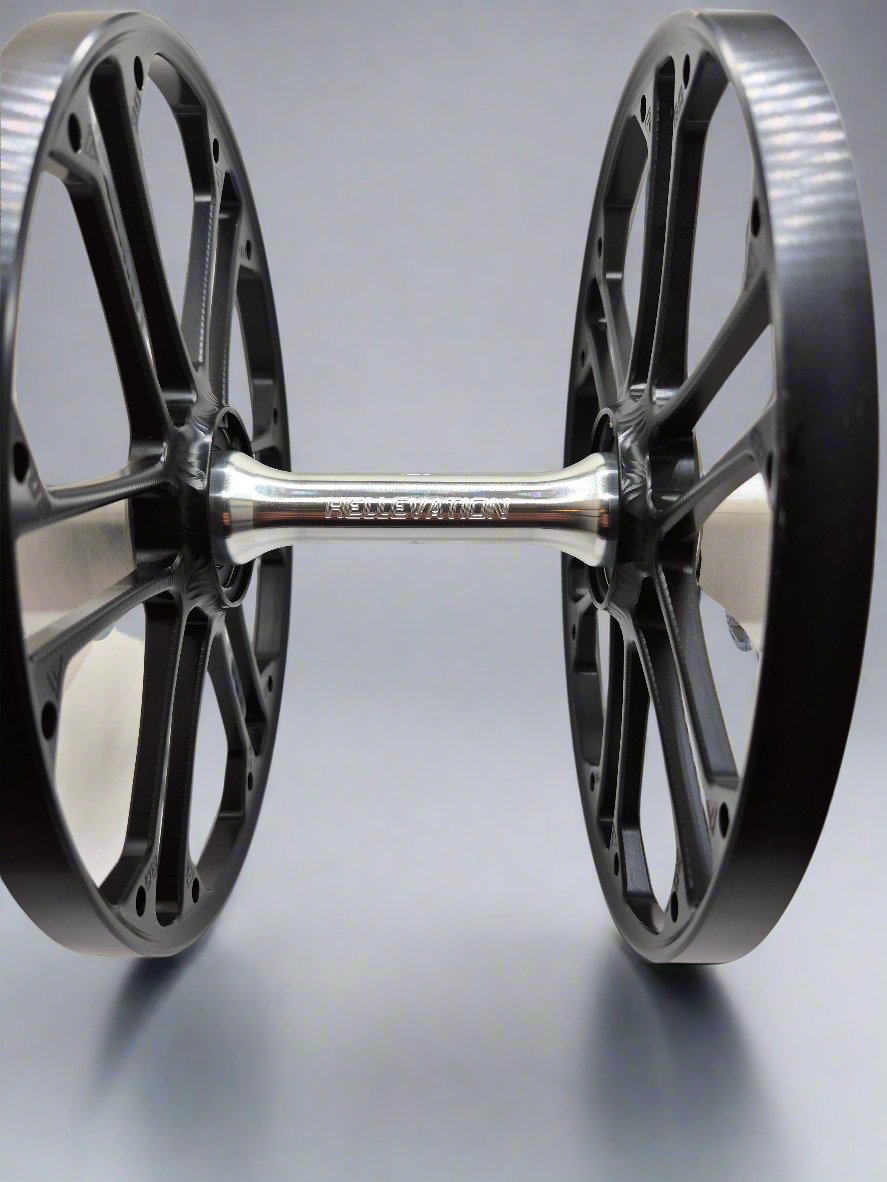

The basis of our modular rear axle system starts with the 7075 hour-glass aluminum axle machined for oversized 25mm (6205) bearings with roll formed M10 threads.

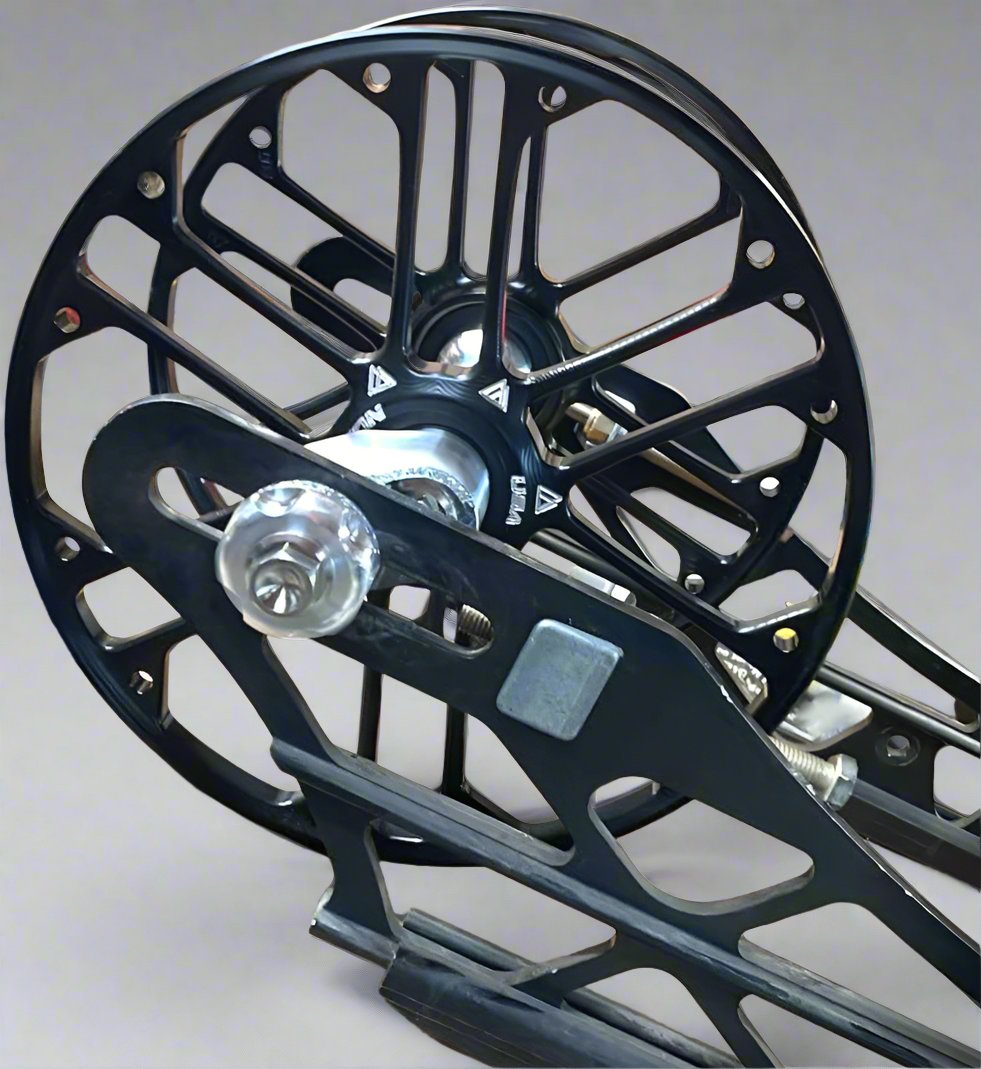

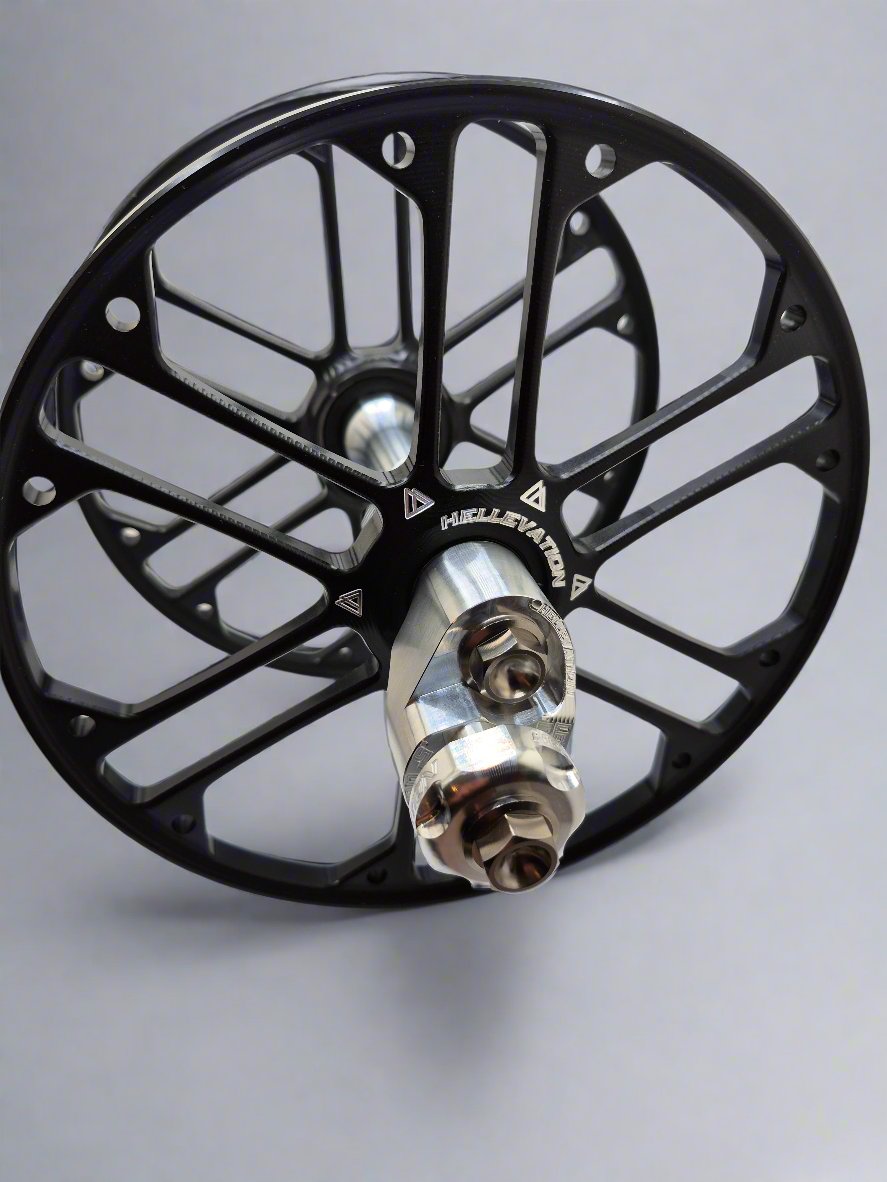

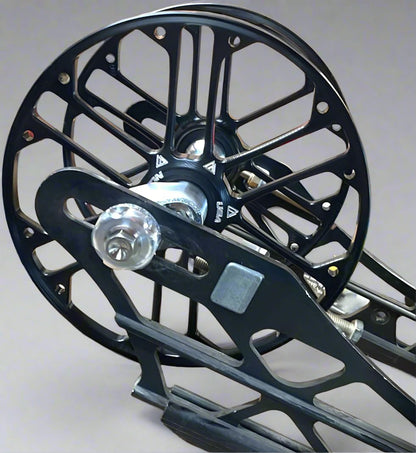

The axle is integrated to the rails with interchangeable billet 7075 skeletonized end links. These axle ends feature a thru rail captured slot system with self indexing outer caps/ends to interface with either internal or external adjusters.
Choose the axle ends needed to match your rail slot height, desired offset, & number of wheels.
.500" offset will allow for 1.0" larger diameter wheels than oem 1.0" offset will allow for 2.0" larger diameter wheels than oem
